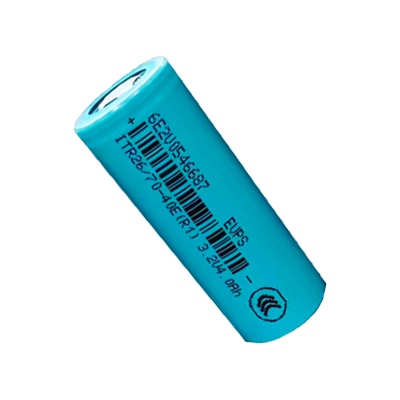

3.2V 26700 4000mAh LiFePO4 cells

Product Item : LNC-3.2V-26700-4Ah
Category： LiFePO4 Cells
Model: 26700
Voltage: 3.2V
Capacity: 4000mAh
Brand: EVPS
Product description：3.2V 26700 4000mAh LiFePO4 cells with CCC/GBT31484/GBT31485/GBT31486/BIS/CE/Rohs/PSE/UL1642/ UL1642/BSMI/CB IEC62133/CB IEC62619/UN38.3/MSDS
INQUIRY EMAIL

LNC-3.2V-26700-4Ah

ITEMS	SPECIFICATION	REMARK
Nominal Capacity	4.0Ah	0.5C@25ºC±2ºC
Minimum Capacity	3.96Ah	0.5C@25ºC±2ºC
Nominal Energy	12.8Wh	0.5C@25ºC±2ºC
Nominal Voltage	3.2V
Maximum Charge Voltage	3.65V
Limited Charging Voltage	3.65V
Discharge Cut-off Voltage	2.0V
Internal Resistance	≤20mΩ(AC): 1KHz ≤35mΩ(DC): 25ºC, 50%SOC, 2C(8A) discharge for 10s
Standard Charge Current	0.5C(2A)
Standard Discharge Current	0.5C(2A)
Maximum Continuous Charge Current	2C(8A)	Not for cycle
Maximum Continuous Disharge Current	3C(12A)	Not for cycle
Standard Charge Method	At 25ºC±2ºC, 0.5C(2A) constant current (CC) charge to 3.65V , followed by 3.65V constant voltage (CV) charge until current taper to 0.05C (0.2A).
Standard Discharge Method	At 25ºC±2ºC, discharge with 0.5C(2A) constant current, 2.0V cut-off.
Operating Temperature	Charge: 0ºC~55ºC Discharge: -20ºC~60ºC
Storage Temperature	Less than 1 year: -20ºC~25ºC Less than 3 months: -20ºC~45ºC	40%~60% SOC storage
Dimension	Height: 71±0.2mm Diameter: 26.4±0.2mm
Weight	90±3g
