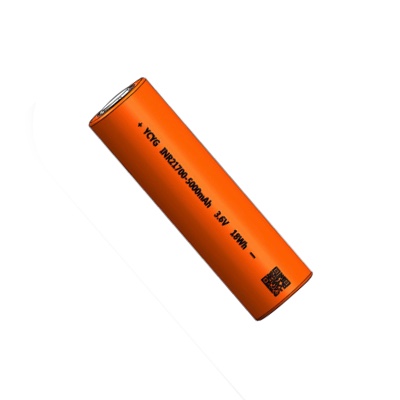

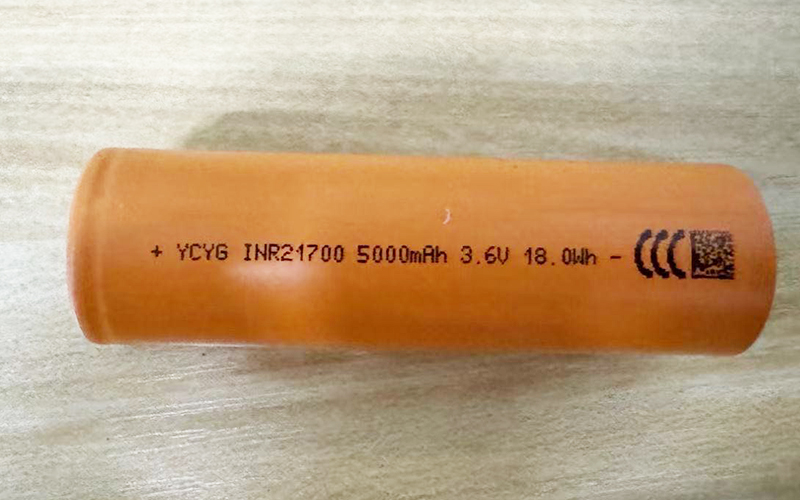

3.6V 21700 5000mah 3C NCM li ion cell

Product Item : LNC-3.6V-21700-5.0Ah-3C
Category： NMC Cells
Model: 21700
Voltage: 3.6V
Capacity: 5000mAh
Brand: YCYG
Product description：3.6V 21700 5000mah 3C NCM li ion cell with IEC62133/CB/Rohs/Directive EU/Reach/CE/BIS/IS16893(part-2)/IS16893(part-3)/UL1642/UL2580/CCC /UN38.3/MSDS/Air Identify certification/sea Identify certificat
INQUIRY EMAIL

BASIC PARAMETER:

Item	Specifications
Typical Capacity	5000mAh @0.2C, 25˚C
Minimum Capacity	4800mAh @1C, 25˚C
Nominal Voltage	3.6V
Internal Impedance	≤20mΩ
Discharge Limited Voltage	2.5V
Charging limited Voltage	4.2V
Standard Charging	0.5C
Maximum Charging	3C (not for cycle life)
Standard Discharging	1C
Quick Discharging	3C (not for cycle life)
Max Discharge Current	5C (≤3S)
Weight	70.0±4.0g
Dimension	Diameter (With PVC): 21.65±0.2mm; Height (With PVC): 70.85±0.2mm.
Operating Temperature (Ambient)	Charge: 0~45C Discharge: -20~60˚C
Storage Temperature	Min 1 month: -5~35ºC Min 6 month: 0~35ºC
