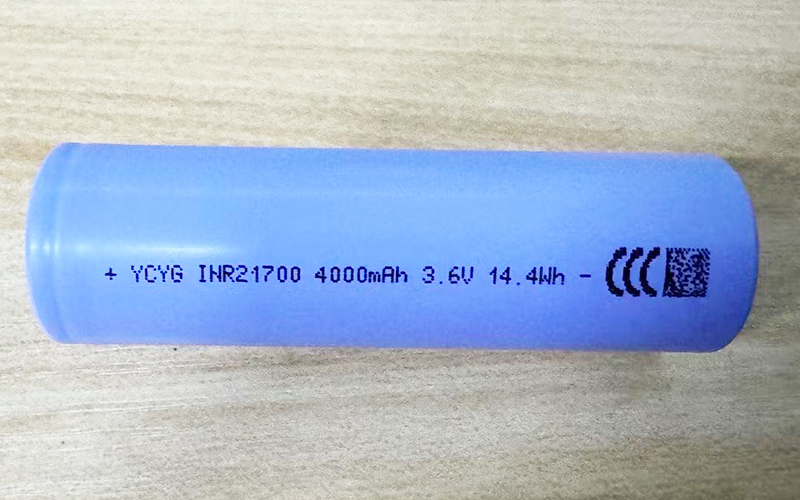

3.6V 21700 4000mah 5C li ion nmc battery cell

Product Item : LNC-3.6V-21700-4.0Ah-5C
Category： NMC Cells
Model: 21700
Voltage: 3.6V
Capacity: 4000mAh
Brand: YCYG
Product description：3.6V 21700 4000mah 5C li ion nmc battery cell with IEC62133/CB/Rohs/Directive EU/Reach/CE/UL1642/BIS/CCC/UN38.3/MSDS/Air Identify certification/sea Identify certification.
INQUIRY EMAIL

BASIC PARAMETER:

Item	Specifications
Typical Capacity	4000mAh @0.2C, 25˚C
Minimum Capacity	3900mAh @0.2C, 25˚C
Nominal Voltage	3.6V
Internal Impedance	≤18mΩ
Discharge Limited Voltage	2.5V
Charging limited Voltage	4.25V
Standard Charging	0.5C
Maximum Charging	3C
Standard Discharging	1C
Quick Discharging	5C
Max Discharge Current	8C (≤3S)
Weight	70.0±3.0g
Dimension	Diameter (With PVC): 21.65±0.2mm; Height (With PVC): 70.85±0.2mm.
Operating Temperature (Cell Surface)	Charge: 0~50°C Recharge release: ≤45˚C Discharge: -20~80˚C Re-discharge release: ≤60ºC
Storage Temperature	Min 1 month: -5~35ºC Min 6 month: 0~35ºC
