  • 3.6V 18650 2600mAh 5C NCM Li ion Cell

3.6V 18650 2600mAh 5C NCM Li ion Cell

  • Product Item : LNC-3.6V-18650-2.6Ah-5C
  • Category： NMC Cells
  • Model: 18650
  • Voltage: 3.6V
  • Capacity: 2600mAh
  • Brand: YCYG
  • Product description：Optimize your power needs with the 3.6V 18650 2600mAh 5C NCM Li-ion battery cell. Designed with advanced Nickel Cobalt Manganese (NCM) chemistry, this high-capacity battery offers excellent energy den
  • INQUIRY   EMAIL

3.6V 18650 2600mAh 5C NCM Li ion Cell

BASIC PARAMETER:

Item

Specifications

Typical Capacity
 2600mAh @0.2C, 25˚C
Minimum Capacity 2500mAh @1C, 25˚C
Nominal Voltage 3.6V
Internal Impedance ≤18mΩ
Discharge Limited Voltage 2.5V
Charging limited Voltage 4.25V
Standard Charging 0.5C
Maximum Charging 3C
Standard Discharging 1C
Quick Discharging 5C
Max Discharge Current 8C (≤3S)
Weight 44.5±1.5g
Dimension

Diameter (With PVC): 18.3±0.2mm;

Height (With PVC): 65.10±0.2mm.

Operating Temperature (Cell Surface)

Charge: 0~50°C

Recharge release: ≤45˚C

Discharge: -20~80˚C

Re-discharge release: ≤60ºC

Storage Temperature

Min 1 month: -5~35ºC

Min 6 month: 0~35ºC

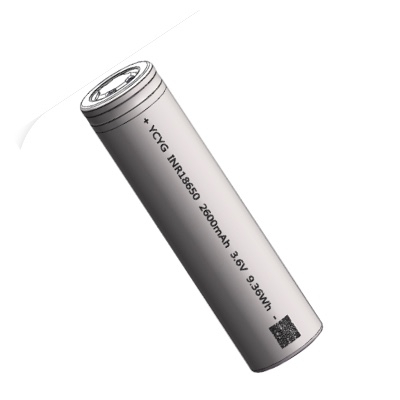

BATTERY PICTURE:

BATTERY PERFORMANCES

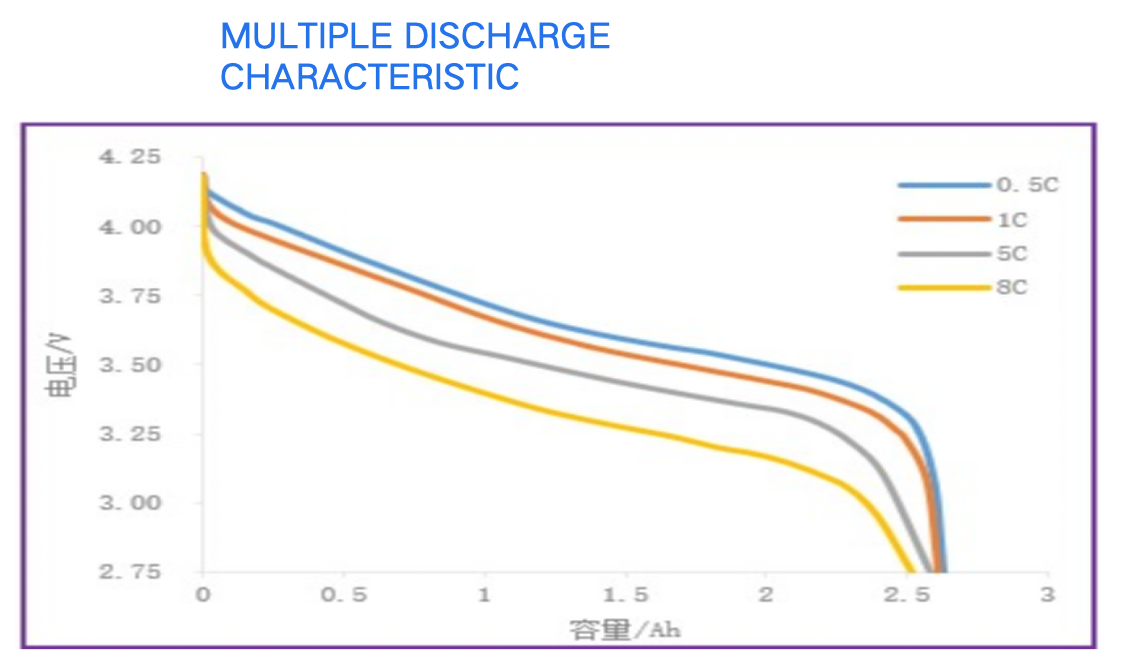

DISCHARGE CHARACTERISTICS:

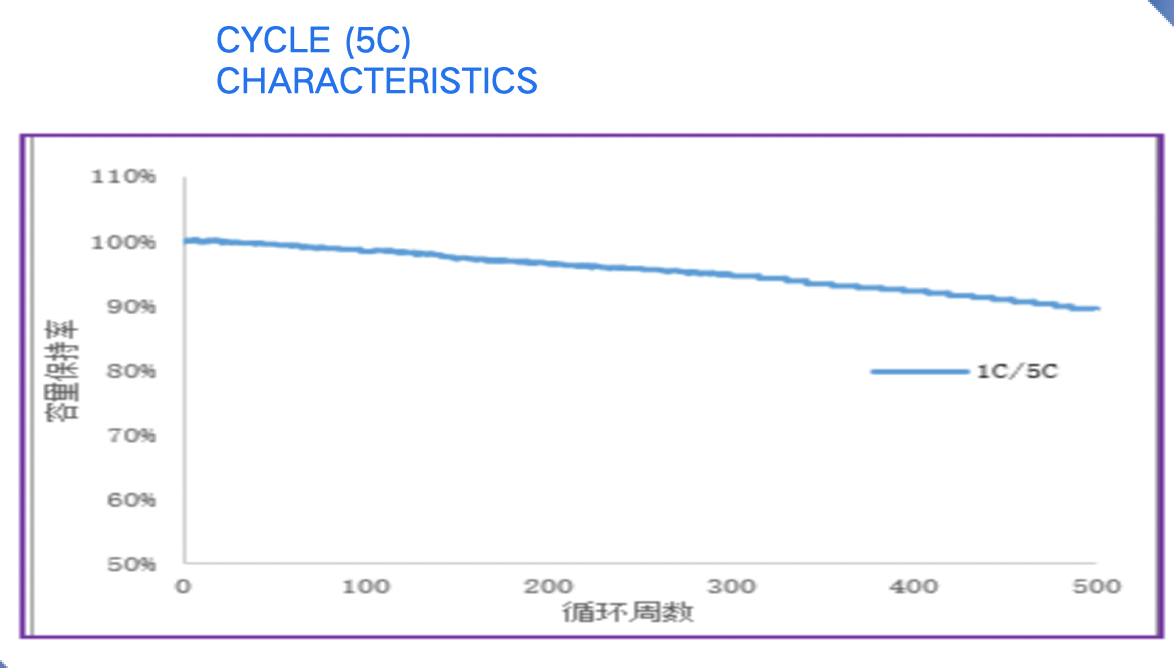

LIFE CYCLES:

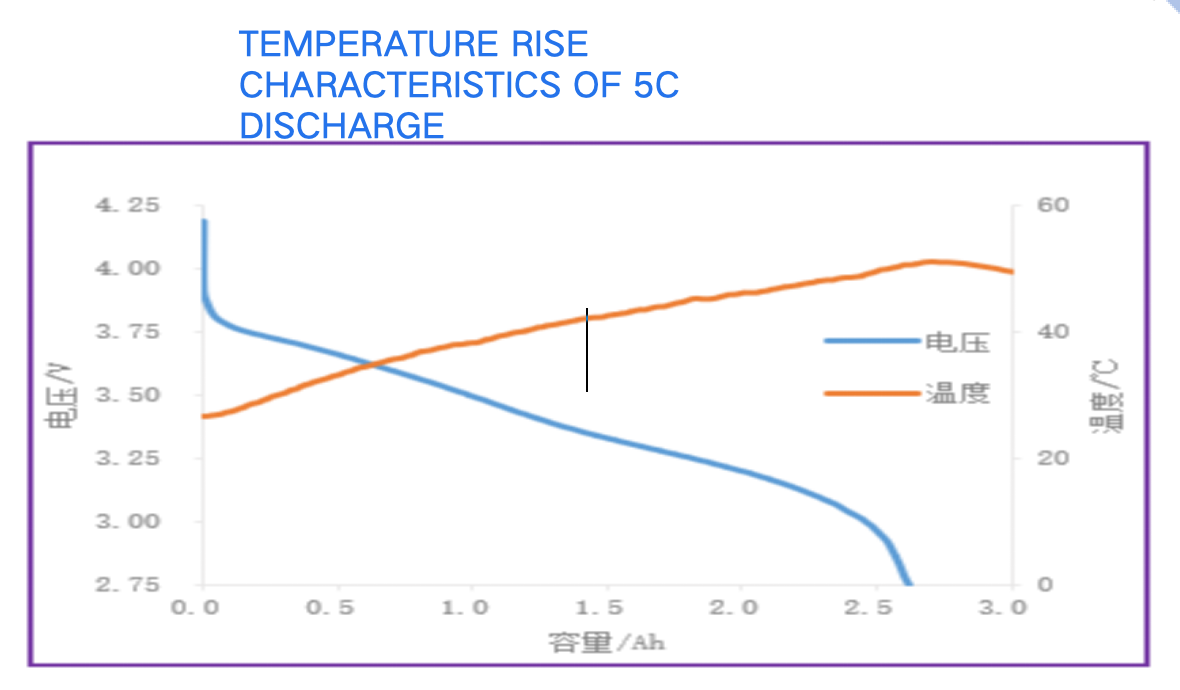

TEMPERATURE RISING:

APPLICATIONS

CERTIFICATIONS


PRODUCTION EQUIPMENT

TESTING EQUIPMENTS
