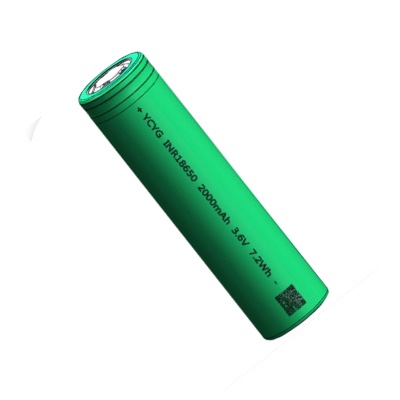

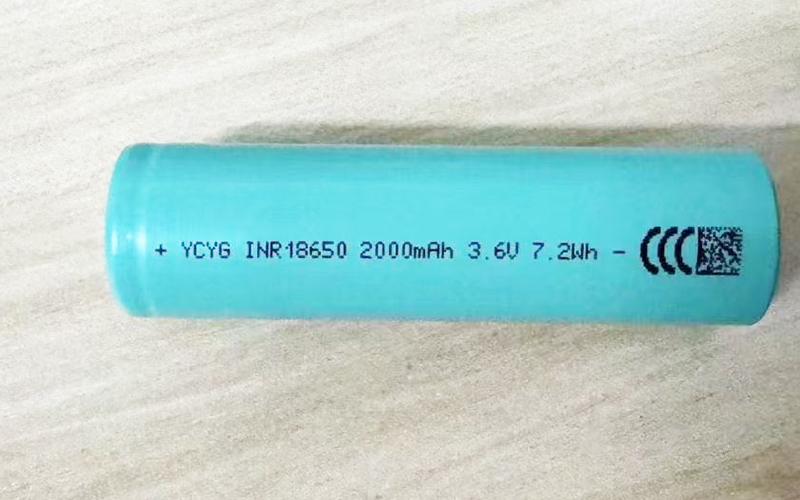

Item

Specifications

Typical Capacity

2000mAh @0.5C, 25˚C

Minimum Capacity

1950mAh @1C, 25˚C

Nominal Voltage

3.6V

Internal Impedance

≤18mΩ

Discharge Limited Voltage

2.5V

Charging limited Voltage

4.25V

Standard Charging

0.5C

Maximum Charging

3C

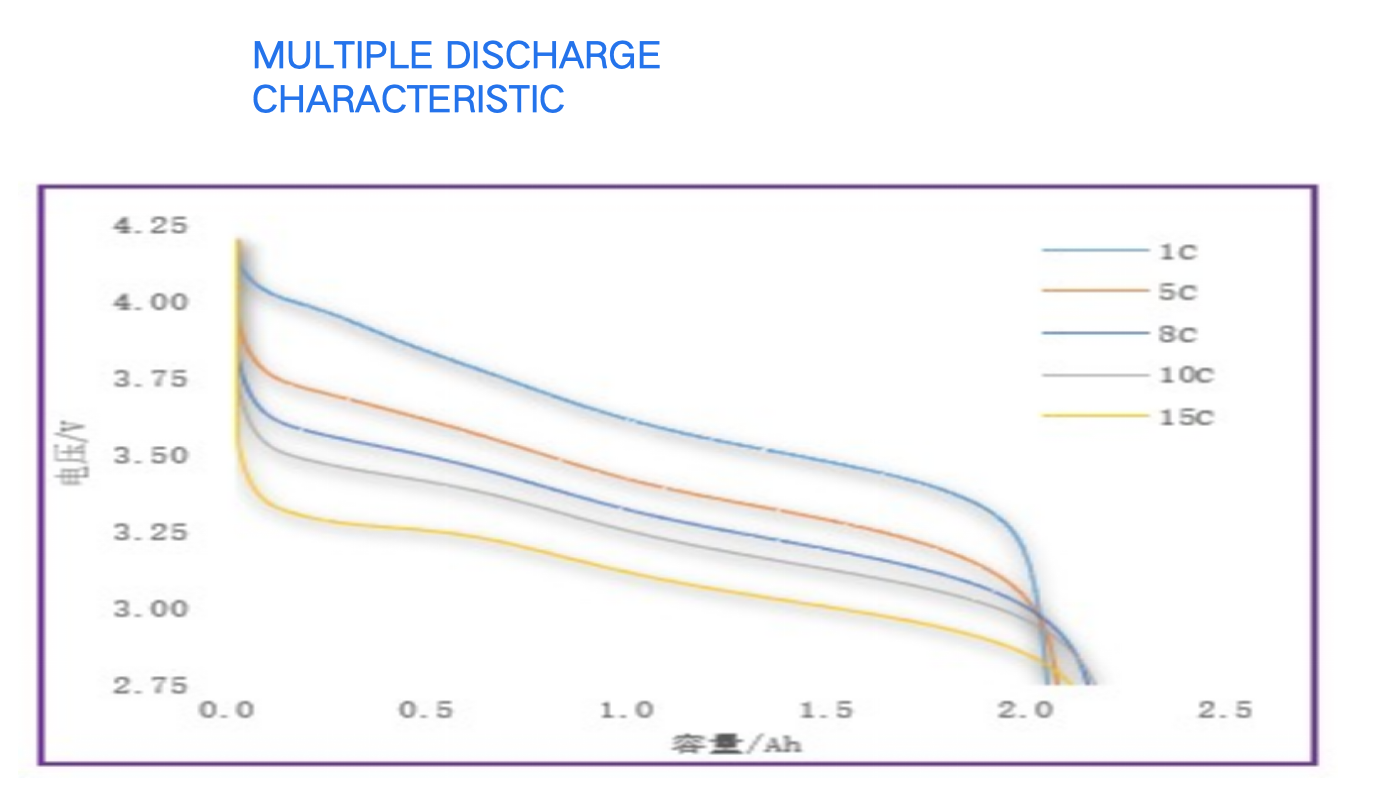

Standard Discharging

1C

Quick Discharging

10C

Max Discharge Current

15C (Not for cycle life)

Weight

43.5±1.5g

Dimension

Diameter (With PVC): 18.3±0.2mm;

Height (With PVC): 65.10±0.2mm.

Operating Temperature (Cell Surface)

Charge: 0~50°C

Recharge release: ≤45˚C

Discharge: -20~80˚C

Re-discharge release: ≤60ºC

Storage Temperature

Min 1 month: -5~35ºC

Min 6 month: 0~35ºC
